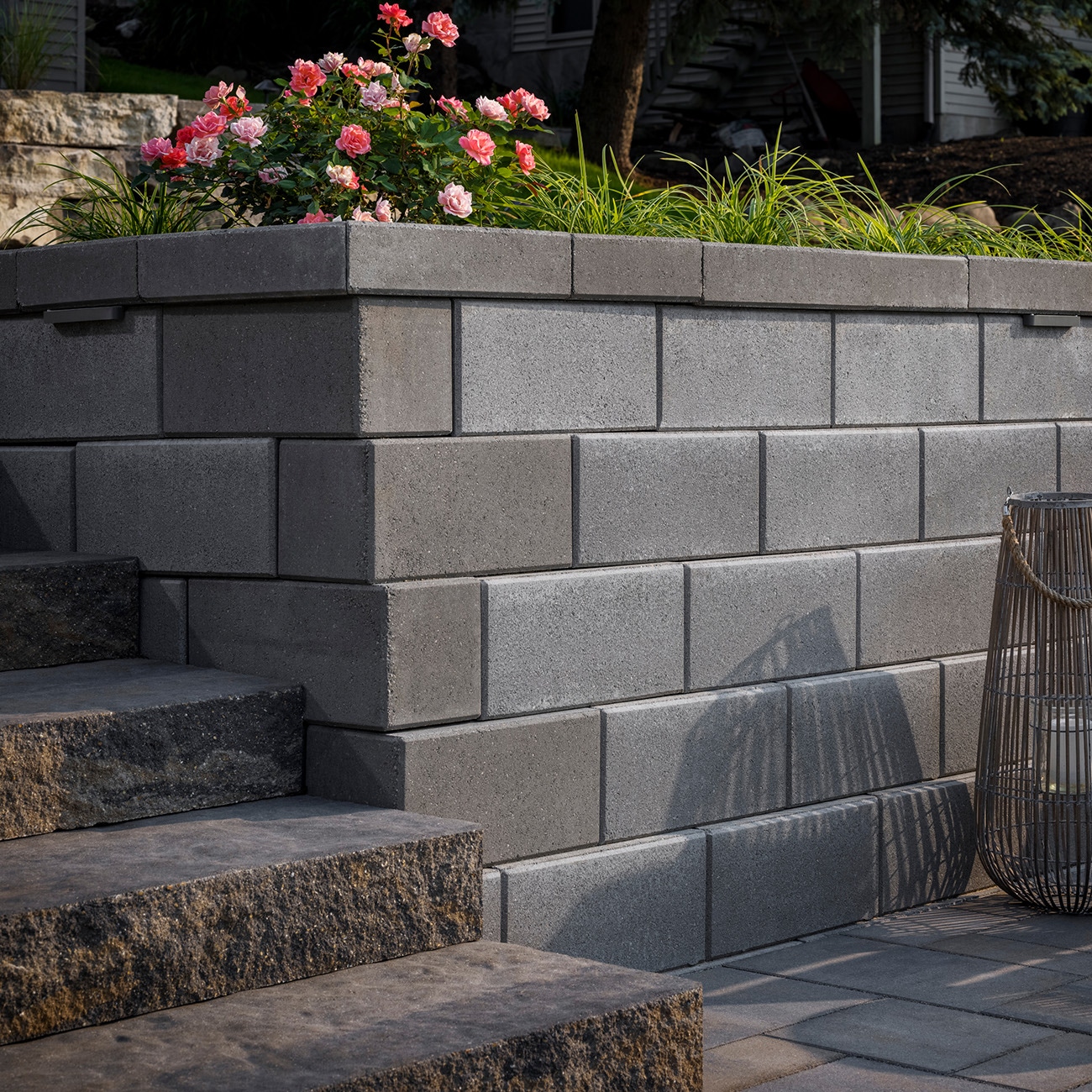

Diamond Pro® PS Smooth Face
See More
Diamond Pro® PS Smooth Face
For walls over 30 inches in height, soil reinforcement is generally necessary. A qualified engineer should be consulted for design and analysis of structures.
Features & Benefits:
- Pin system installation method
- Large cores for ease in handling
- Ease of installation with oversized pin aligning cores
- Pin cores allow for multiple batter options
- Builds walls in excess of 50 feet when combined with geosynthetic reinforcement
- One square foot of wall face per block
- Gravity walls can be built up to 4 feet high*, including the buried course, with 7.1 degree batter
- Minimum outside radius, measured on the top course to the front of the units: 4 feet
- Minimum inside radius, measured on the base course to the front of the units: 6 feet
- Setback/System Batter: Near Vertical and 1”/7.1º; additional system batter can be created by alternating pin placement on each course of wall
Diamond Pro® PS Smooth Face is currently not available in your region
To special order this product, please contact a contractor/dealer near you.
