Diamond Pro® PS Quarried Face

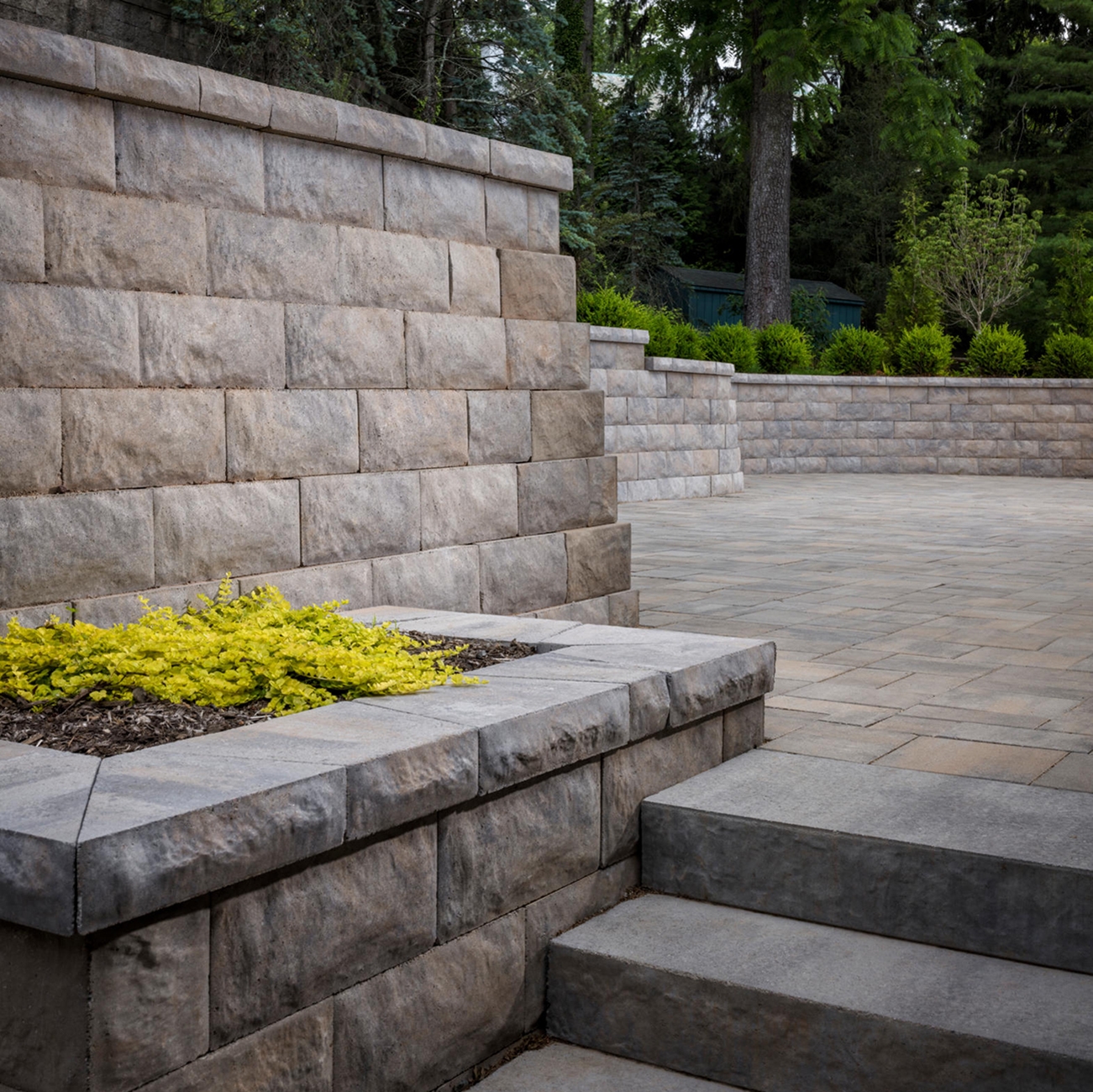

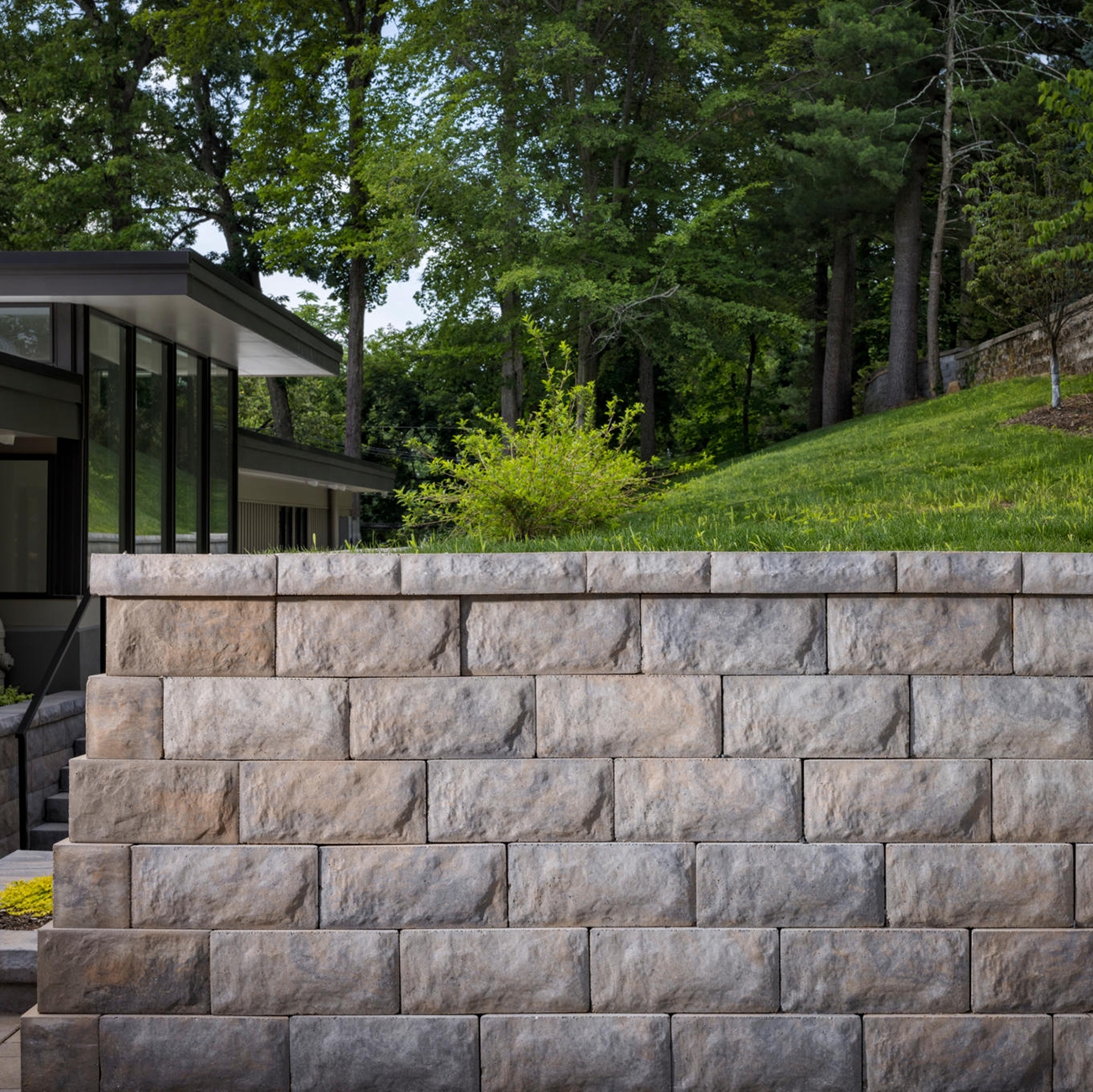

Inspired by the look of natural, unearthed stone, the Diamond Pro® PS Quarried Face pairs the time-tested strength of a Diamond Pro® retaining wall system with the installation ease of a pin locator.

Features & Benefits:

  • Pin system installation method.
  • Large cores for ease in handling.
  • Ease of installation with oversized pin aligning cores.
  • Pin cores allow for multiple batter options.
  • Build walls in excess of 50 feet when combined with geosynthetic reinforcement.
  • One square foot of wall face per block.
  • Gravity walls can be built up to 4 feet high*, including the buried course, with 7.1 degree batter.
  • Minimum outside radius, measured on the top course to the front of the units: 4 feet.
  • Minimum inside radius, measured on the base course to the front of the units: 6 feet.
  • Setback/System Batter: Near Vertical and 1″/7.10; additional system batter can be created by alternating pin placement on each course of wall.

Bella & Sable Blend – stocked in Crofton.

*All colors and/or products may not be available in all areas. Please inquire for availability and special order options.


Sable Blend
  • * Required

Technical Information
8 x 18 x 12
8 x 18 x 9
Quarried Cap
4 x 17 1/4 / 12 x 10 3/8
U Start Base Block
3 1/2 x 18 1/2 x 12
U Start Base Block actual coverage length is 16 11/16"
Fiberglass Pins
5” L x .05” dia.
Sold Separately
Technical Information

Cut Sheet

Diamond Pro PS Quarried Face – National Cut Sheet

Installation Guide

Installation Guide | Diamond Pro Pin System Wall
