Best Pavers and Paver Patterns for Driveways

Chuck Taylor, Belgard National Hardscapes Advisor, is one of the nation’s foremost experts on pavement systems. He joins us on the Outdoor Living by Belgard blog this week with advice for planning paver driveways.

.    .    .

A paver driveway will boost your curb appeal and improve the value of your home. But as with any other home-improvement project, there are multiple considerations including paver style, color, laying pattern and overall design. The ultimate goal, of course, is to create a beautiful entrance to your home that is durable enough to withstand the burden of vehicular use without shifting or cracking.

Driveway Paver Styles

Aqualine™ Series Permeable Driveway Pavers
Aqualine™ Series permeable pavers.

The first choice is to decide whether the driveway will be permeable or impervious. A traditional paver driveway would be impervious, but there are multiple benefits to installing a permeable paver driveway. Water will never pool on the surface and a heating system can even be installed beneath the pavers to keep snow from accumulating. Also, some states and municipalities offer grants or tax incentives for installing permeable driveway pavers because the system reduces the burden on local stormwater collection systems and helps remove pollutants to improve local water quality.

Several Belgard pavers can be installed as either permeable or impervious, including Urbana Stone®, Mega-Lafitt®, Mega-Arbel® and Bergerac®. Belgard also offers multiple permeable pavers that were designed specifically for permeable installations.

The second choice is whether to go with a traditional, contemporary or stone-textured look. Belgard offers multiple paver styles in each category. Porcelain pavers can also be used to create an ultra-contemporary look, but will require a concrete base to support vehicular loads.

Driveway Paver Laying Pattern Options

The strongest and most traditional option is a herringbone pattern set at a 45-degree angle to the garage. This laying pattern provides the best interlock to prevent the pavers from shifting, especially for higher traffic areas.

Gaining in popularity, an ashlar pattern can also be effective for both residential and heavier traffic and provides a more contemporary look.

A running bond or basketweave pattern can work for standard residential driveways, but it is recommended to avoid these types of long, straight lines for heavier traffic areas, such as commercial driveways or subdivision common areas.

For permeable paver installations, it’s best to stick with ashlar or herringbone patterns due to the larger joints, which create an increased opportunity for shifting when used with running bond or basketweave patterns.

Driveway Paver Thickness and Base

Traditionally, driveways have been constructed using 80mm (3 inch) pavers with a standard 6″ base. However, it is becoming more common practice to use a lighter 60mm (2-3/8 inch) paver with a thicker base. In rainier climates, the required base depth can be up to 12 inches because of absorbent clays that can cause soils to shift when wet. With these types of site conditions, a thin base puts pavers in danger of separating or cracking from soil shifts. A layer of geo-fabric between the soil and the aggregate layer can add extra protection from this type of shifting, but a thicker base is still recommended. In arid climates, 60mm pavers can be successfully used for driveways with only a 4 to 6 inch base, as shifting clays are not a factor.

A sound residential concrete slab driveway without foundation cracks can be overlayed with 30mm thin pavers. In many cases, DriBond™ advanced mudset can be used to facilitate the entire overlay. Another option would be to DriBond the perimeter and sand-set the primary paver field, if there’s a possibility of shifting soils. Keep in mind that an overlay will add 2.5 to 3 inches of elevation to the existing slab, which could affect transitions to the garage, home, street or walkways.

Paver Color and Border Options

This Mega-Bergerac® driveway ties in with the color tones of the roof. A border was created by using only the large stones of this 4-piece system.

Current trends lean towards choosing driveway paver colors that tie in with the roof color of the home, either in the primary paver field or in a border. Borders can be easily created by using the same paver in either a different color or different laying pattern.

Another option is to choose a contrasting paver shape, texture, color and/or style for the border. You can also create double borders or work with your contractor to develop other creative design ideas.

Paver Driveway Embellishments

Focal points can be created using pattern embellishments. Typical focal points include the driveway entrance, the garage apron, or what’s called a “carriage drop,” or the spot where someone would be dropped off adjacent to the home’s formal entrance.

Adding character to paver driveways, a circle kit creates a classic focal point for more traditional driveway. Contemporary focal points can be created using squares or rectangles. For a Romanesque look, circle kits can be used to create a fan or a fishtail design.



Don’t Remove that Concrete Slab!
Overlay it.

Few renovation projects will drastically improve your home’s curb appeal like converting an old stained and cracked concrete driveway to a stunning paver driveway. And nothing transforms an outdated pool like a beautiful contemporary paver pool deck.

However, these types of projects typically call for the painstaking, costly and time-consuming process of ripping out that old concrete. Or do they?

Thanks to the incredible patent-pending formula of Techniseal® DriBond™ advanced mudset, concrete removal is completely unnecessary, as long as the slab is structurally sound. A driveway, patio, walkway or pool deck can be completely transformed in less than 48 hours, and for significantly less cost than concrete removal and replacement.

DriBond installs like sand — filling the cracks and seams of a sound concrete slab — to provide a bedding surface for the installation of thin concrete pavers, porcelain pavers, or natural stone. Activated with water, DriBond sets like concrete to create a durable bond. The result is a stunning outdoor living space with lasting beauty.

Driveway Transformation

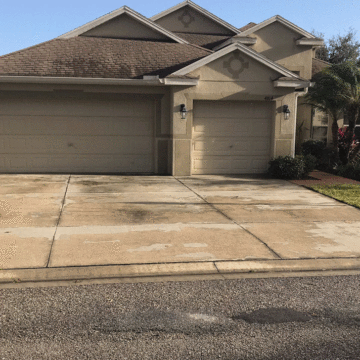

Before Driveway Paving Stones

DriBond Paver Driveway

Belgard Products that Work with DriBond

(consult a local installer for additional styles in your area)

See DriBond in Action

Introducing New Agilina™ Plank

Agilina Plank Paver

Inspired by the clean lines of modern design trends, new Agilina™ Plank is a marriage of old-world aesthetics and contemporary lines. With the beautifully textured face of natural cut stone, Agilina™ Plank is available in multiple size formats to create numerous looks and patterns for stylish outdoor living designs. Varied widths and lengths allow for multiple running bond patterns to create either a random or more stylized look, depending upon preference. Agilina™ Plank also works well as a border for mixed paver designs, and when using the longer planks, requires fewer cuts.

Applications

All sizes of Agilina™ Plank work well for contemporary paver patios, walkways or pool decks.

Agilina Plank Paver Patio

The three-piece 60mm-profile system can also overlay existing concrete with the help of DriBond™ advanced mudset to transform existing living outdoor spaces.

Agilina™ Plank is also available in 80mm profile, which is capable of supporting light vehicular loads for creating stylish paver driveways. When overlaying a sound concrete base, the 60mm profile can also be used for residential vehicular applications.

Agilina Plank Paver Driver

Areas of distribution

Agilina™ Plank is currently available throughout the Midwest, Northeast and Southern regions and will be launched in other markets throughout the year.

Design Ideas:
Accenting with Paver Patterns

Various paver patterns can be used as an accent to accomplish a number of outdoor living design goals. From simple borders to elaborate inlaid designs, incorporating an accent of a differing paver style, texture, shape or color can add a creative touch to your outdoor spaces to improve both the form and function.

Borders

Whether an outer border or an inlaid border, bordering a paver field with a contrasting shape, color and/or texture can really make your pavers pop.

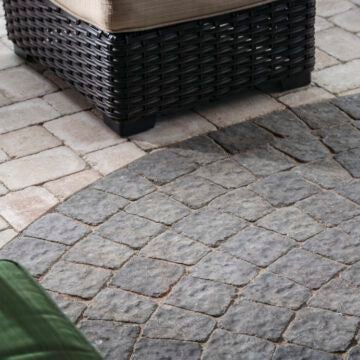

Circle Kits

Several Belgard paver styles have coordinating circle kits that can be used to create simple or complex designs.

Driveway Accents

Create a dramatic entrance to your home through the use of design accents. You can do this by using multiple paver styles, or simply by using contrasting colors, shapes and/or laying patterns of the same paver style.

Inlaid Paver Rug Designs

Creating an inlaid faux rug design reinforces the outdoor room concept and helps define the space.

Transitions

Paver patterns and borders can be used to indicate the transition from one outdoor room to another.

Creative Touches

Borders and varying patterns can be used to interject creative touches here and there, which can add visual interest to a hardscape design.

Intricate Designs

Paver patterns can also be used to create intricate and creative designs. Keep in mind, however, that these types of designs require additional cutting and a highly skilled contractor.

•   •   •

For more on paver patterns, read our Trends in Paver Laying Patterns blog.

Next week’s blog:  Fall is the perfect time for cooking outdoors, especially when you have this foolproof recipe for smoked brisket.

Permeable Paver Driveways: Beautiful in Form and Function

Pavers: Subterra Stone®
Pavers: Eco Dublin®

The use of permeable pavers in driveway construction is growing exponentially across the country, particularly in areas with water use restrictions or strict stormwater management guidelines. Not only do permeable pavers boost your curb appeal, they also positively impact the environment by decreasing stormwater runoff and improving the water quality of local waterways.

Pavers: Aqualine™ Series

How, you ask? It’s ingeniously simple, actually. Permeable pavers are installed over a gradient bed of aggregate, with tiny aggregate filling the joints between each paver. As rainwater falls onto the pavers (or drains onto the pavers from another surface), the water percolates through the paver joints and down through the base materials below. There, the water is filtered by the aggregates, removing a number of pollutants before the water makes it’s way into the groundwater supply or returns to local waterways. The rising trend is to incorporate an underground cistern with a pump under the paver system so that the filtered water can be captured and recycled. A number of states and municipalities offer grants or tax incentives for these types of rainwater harvesting systems. The recycled water can be used for irrigation, water features, or other greywater uses.

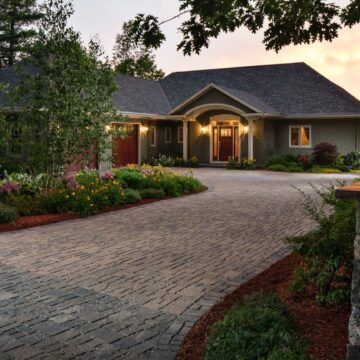

Subterra Stone® improved the safety of this steep driveway.

Constructing a driveway with permeable pavers can also provide a number of other solutions for homeowners. For example, for steep driveways, permeable paver construction is safer during rainy weather conditions than traditional impervious surfaces, such as concrete or asphalt, because rain can permeate through pavers instead of pooling on the surface, thus improving traction.

Illustration of heated paver installation.

In areas prone to heavy snow, a heating system can also be installed under the sand base of the pavers so that snow or icy rain immediately melts and drains away, eliminating snow shoveling or ice accumulation. The sand acts as a buffer between the pavers and the coils, preventing damage from any shifting caused by automotive traffic.
