Diamond Pro® Pin System
Diamond Pro® Pin System
See More

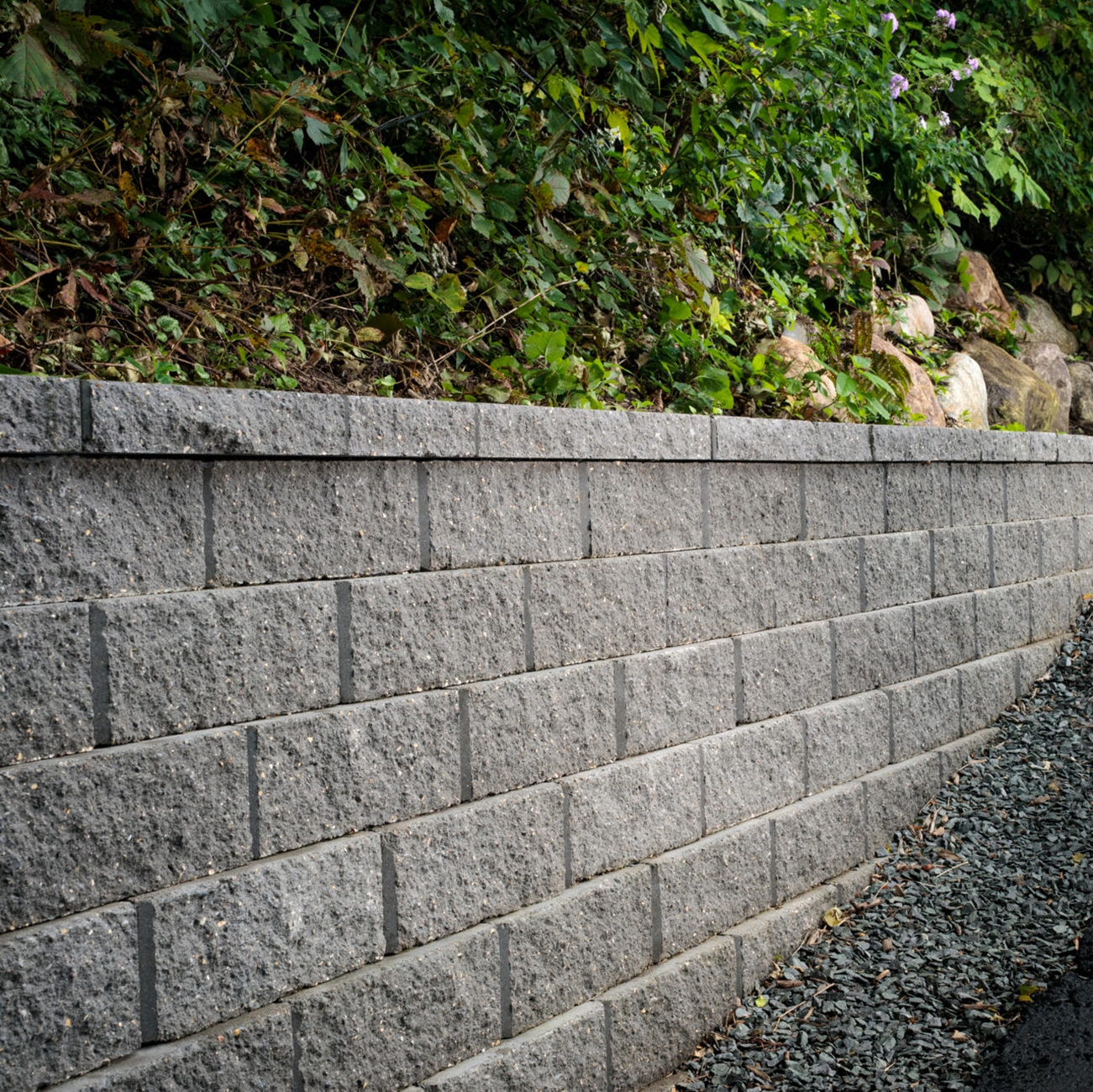

Diamond Pro® Pin System
Architects and engineers choose the Diamond Pro® Pin System retaining wall system to create flexible, cost effective solutions for a broad range of large commercial, municipal and residential retaining wall projects.
Features & Benefits:
- Pin system installation method
- Large cores for ease in handling
- Ease of installation with oversized pin aligning cores
- Pin cores allow for multiple batter options
- Builds walls in excess of 50 feet when combined with geosynthetic reinforcement
- One square foot of wall face per block
- Gravity walls can be built up to 4 feet high, including the buried course, with 7.1 degree batter
- Minimum outside radius, measured on the top course to the front of the units: 4 feet
- Minimum inside radius, measured on the base course to the front of the units: 6 feet
- Setback/System Batter: Near Vertical and 1”/7.1º; additional system batter can be created by alternating pin placement on each course of wall
Diamond Pro® Pin System is currently not available in your region
To special order this product, please contact a contractor/dealer near you.
