Project Profile:
Heated Permeable Pavers

In colder climates, it’s not uncommon for driveways, walkways or patios to be installed with either a heated pavement system or a permeable pavement system to help control ice buildup. This homeowner, however, chose to combine the two systems into one to create the ultimate ice-management pavement system.

The heated permeable paver driveway immediately melts and drains snow and ice. A heating coil is hidden beneath Belgard Eco-Dublin® permeable pavers, which are laid at a 45-degree angle to the house to add visual interest to the elegant design. Decorative poured concrete curbing coordinates with the charcoal paver accents and sits atop edge restraints, adding both stability and a finished look to the pavement system. Matching curbing also lines the landscape beds throughout the property.

Benefits of a Combined Heated/Permeable Pavement System

With a heated pavement system, snow and ice melt immediately to prevent accumulation, but if the surface is not graded properly, or if the pavement settles or degrades over time, there can be pooling or other issues. In comparison, a permeable system allows melting snow to drain into the joints and down into the subsurface rather than remaining on the surface and refreezing into ice. Typically, a plow clears the bulk of the snow, ice melt is applied, and the water goes away. However, with a combined heated permeable pavement system, no plowing or ice melt is needed. All snow or freezing rain that hits the surface melts and drains immediately. Plus, concrete pavers are more durable than poured concrete or asphalt, ensuring increased longevity of a properly working system. After two winters, the homeowners report that the system is performing beautifully, with no water or snow accumulation whatsoever.

How Does It Work?

Heating cables are laid out in the bedding layer, beneath the pavers. Two heat/moisture sensors, each about the size of a tennis ball, are installed in the pavement to automatically turn the heating cables on when there is both precipitation and a below-freezing temperature. When the system is on, it takes a lot of electricity to heat the 4,300 SF drive and walkway, necessitating the addition of a 400-amp pedestal to operate the system. However, because the sensors require both moisture and freezing temperatures, the system is rarely on.

A layer of sand prevents the pavers from having direct contact with the heating cable, which is laid out in the bedding layer. With direct contact, potential movement by the pavers over time could wear through the cable’s protective coating and short out the entire installation. This is especially important in a vehicular application.

Installing the System

Although, the system was planned to include only 18” of excavation, abnormal site conditions required 36” of excavation. A variable base of aggregate was then installed – 27” of #2 stone, 4” of #57, and 2” of #9. A heating cable was installed within the #9 stone layer. In order to maximize the amount of heat transferred from the heating cable to the pavers, the stone separating the cable and pavers needs as much contact with both as possible. Crushed stone with fines transfers the most heat, but doesn’t drain, so it isn’t used in a permeable installation. Instead, the heating cable manufacturer, Warmzone Radiant, recommended smaller drainage stone (#9) because it has more contact with the cable and transfers more heat than larger stone. A layer of sand was then installed over the aggregate to create a cushion between the heating cable and the pavers. This was done to prevent potential paver movement from wearing through the cable’s protective coating over time, which could short out the entire system. The crew also took extra care during the handling and installation of the cable to safeguard the protective coating and ensure long-term functionality of the system.

walkway
A heated permeable paver walkway coordinates with the driveway to create a dramatic entrance to the front of the home. The heated Eco-Dublin pavers provide a safe environment for guests and eliminate the need for snow shoveling and deicing agents.

2014 HNA Project Award Winner – Residential Concrete Permeable Pavers

Design/build Contractor: Grindstone Hardscapes, Josh & Kristen Graczyk, Owners
Location: Grand Island, Nebraska



Outdoor Living Trends in New Home Construction

For over a decade, the gradual trend has been for homeowners to transform the formerly open backyards of existing homes into definable “outdoor living” spaces. In new home construction, however, this phenomenon has grown exponentially in more recent years to the point that outdoor living has becoming a standard feature at just about any price level. Although upgraded outdoor living spaces are more common at higher price levels, new construction home buyers at all levels want to know that they’ll be able to live in and enjoy their outdoor spaces. According to builders, realtors and landscape architects, some definable trends have emerged as being “highly desirable” to potential buyers.

Indoor/Outdoor Convergence: For several years, the trend has been to create outdoor living areas that mimic indoor living. This has evolved in a way that with many new home designs, there is no distinct separation between the indoor and outdoor spaces, but more of a fluid separation between the two areas. These types of designs might incorporate floor-to-ceiling retractable glass walls, stackable doors or floor materials that contribute to that sense of flow. For example, Belgard Porcelain Pavers were designed for outdoor use, but coordinate with a line of interior porcelain tile, which allows for the same flooring aesthetic to be used both inside and outside of the home.

Superlite_RES_BEL2015_24x24_Mirage_Quartziti_Ardesie_6_preview
Multiple floor-to-ceiling glass doors and Ardesie porcelain pavers make this porch feel like a continuation of the home’s interior living spaces.

•   •   •

Fully Functioning Kitchens: Although this trend is more typically seen in higher priced homes, smaller homes are jumping on the outdoor kitchen bandwagon, even if on a smaller scale — like with a simple built-in grill. But for mid-level homes and above, buyers want an outdoor kitchen with all the conveniences of an indoor kitchen, and then some. In luxury homes, the outdoor kitchen often costs more than the indoor kitchen, with amenities that incorporate everything from dishwashers to brick ovens. In many cases, the outdoor kitchen also functions as an outdoor bar and includes items like roll-top beverage coolers, kegerators and wine refrigerators.

This well-appointed outdoor kitchen and bar includes seating, outdoor refrigerator, kegerator, Bristol Brick Oven, built-in grill, sink and storage.
This well-appointed outdoor kitchen and bar includes seating, outdoor refrigerator, kegerator, Bristol Brick Oven, built-in grill, sink and storage.

•   •   •

Integrated Audio/Visual and Lighting: New homes of every price range are incorporating outdoor televisions and sound systems, even if on the smaller scale of an outdoor-rated bluetooth speaker system. Mid-level homes and above are taking the trend to the next level with outdoor sound systems that are integrated with the interior of the home so that the same music can be played inside the home as outside, which follows the indoor/outdoor convergence trend. With the rapid advance of smart phone technology, this can be taken to an even higher level with systems that can operate off of a mobile app to control every electronic aspect of the outdoor living space, including TVs, sound systems, lighting, fire features and pool equipment.

Every electronic aspect of this outdoor living area is controlled by the homeowner's mobile app, including the fan, lighting, TV and the gas starter on the fireplace.
Every electronic aspect of this outdoor living area is controlled by the homeowner’s mobile app, including the fan, lighting, TV and the gas starter on the fireplace.

•   •   •

Intimate Outdoor Spaces: Home buyers are interested in having a relaxing outdoor living area where they can socialize and unwind, creating a trend towards more cozy seating areas, often incorporating a fireplace or fire pit. Some experts relate this trend to the fact that there’s typically a TV in every room of the house, so a cozy outdoor space away from a TV can be a place to escape. Unlike expansive outdoor kitchen spaces, which may be limited to luxury homes, an “outdoor retreat” can be created on a smaller budget and appeals to buyers at all levels. In fact, a cozy outdoor space can easily be created by adding a freestanding wall or two. With the help of a few staged furnishing, potential buyers can get a feel for how they would live in the outdoor space.

The Bristol Fireplace serves as focal point for this intimate gathering spot.
The Bristol Fireplace serves as focal point for this intimate gathering spot. This same sense of intimacy can also be created with the use of a freestanding wall, which can help define the space and create the illusion of an interior room.

•   •   •

Sustainable Design: According to the American Society of Landscape Architects, this year’s top trends in landscape design include both rainwater harvesting and the use of permeable pavers. Although a standard permeable paver installation simply allows water to filter through the paver joints into the ground below, a permeable paver system can be designed to also harvest and recycle rainwater, converging these two trends into one and allowing the reclaimed water to be used for garden irrigation and other uses. Current top landscape trends also include native plants and low-maintenance landscaping.

A permeable paver system, like this Subterra Stone® patio, can be designed to include a collection cistern and a pump to harvest water for reuse with water features, irrigation or other greywater uses.
A permeable paver system, like this Subterra Stone® patio, can be designed to include a collection cistern and a pump to harvest water for reuse with water features, irrigation or other greywater uses.

Permeable Paver Driveways: Beautiful in Form and Function

Pavers: Subterra Stone®
Pavers: Eco Dublin®

The use of permeable pavers in driveway construction is growing exponentially across the country, particularly in areas with water use restrictions or strict stormwater management guidelines. Not only do permeable pavers boost your curb appeal, they also positively impact the environment by decreasing stormwater runoff and improving the water quality of local waterways.

Pavers: Aqualine™ Series

How, you ask? It’s ingeniously simple, actually. Permeable pavers are installed over a gradient bed of aggregate, with tiny aggregate filling the joints between each paver. As rainwater falls onto the pavers (or drains onto the pavers from another surface), the water percolates through the paver joints and down through the base materials below. There, the water is filtered by the aggregates, removing a number of pollutants before the water makes it’s way into the groundwater supply or returns to local waterways. The rising trend is to incorporate an underground cistern with a pump under the paver system so that the filtered water can be captured and recycled. A number of states and municipalities offer grants or tax incentives for these types of rainwater harvesting systems. The recycled water can be used for irrigation, water features, or other greywater uses.

Subterra Stone® improved the safety of this steep driveway.

Constructing a driveway with permeable pavers can also provide a number of other solutions for homeowners. For example, for steep driveways, permeable paver construction is safer during rainy weather conditions than traditional impervious surfaces, such as concrete or asphalt, because rain can permeate through pavers instead of pooling on the surface, thus improving traction.

Illustration of heated paver installation.

In areas prone to heavy snow, a heating system can also be installed under the sand base of the pavers so that snow or icy rain immediately melts and drains away, eliminating snow shoveling or ice accumulation. The sand acts as a buffer between the pavers and the coils, preventing damage from any shifting caused by automotive traffic.

Rainwater Harvesting Now the Hottest Outdoor Design Trend

Permeable paver patios and driveways can be designed to collect and recycle rainwater. (Product shown: Eco-Dublin® pavers)

With last year’s annual survey conducted by the American Society of Landscape Architects (ASLA), green practices began to dominate the list of top outdoor design trends like never before, with 8 of the top 10 trends all related to eco-friendly or sustainable practices. With the recently released 2016 survey results, make that number now 9 out of 10, with rainwater harvesting making a giant leap up to the top spot. Take a look at last year’s trends compared to this year’s.

2015 Top 10 2016 Top 10
1 Native plants Rainwater/graywater harvesting
2 Drought-tolerant plants Native plants
3 Edible gardens Drought-tolerant plants
4 Fire pits/fireplaces Low-maintenance landscaping
5 Low-maintenance landscapes Permeable paving
6 Permeable paving Fire pits/fireplaces
7 Water-efficient irrigation Edible gardens
8 Rain gardens Rain gardens
9 Lighting Water-efficient irrigation
10 Rainwater/graywater harvesting Reduced lawn area

These trends reflect consumers’ growing commitment to landscapes that reduce water use and stormwater runoff, says Nancy Somerville, Hon. ASLA, executive vice president and CEO of ASLA.

“Water issues are hot topics for many communities, and many people are turning to landscape architects for creative green infrastructure solutions,” said Somerville. “Sustainable residential landscape architecture, if part of a broader integrated site design, can dramatically reduce water usage and stormwater runoff over the long term while creating a healthy residential environment.”

With a combined rainwater harvesting permeable pavement system, Belgard offers a way to combine three of these top outdoor design trends with a single design element. With this type of pavement system, rainwater drains through the joints between pavers and percolates down through a bed of gravel into a collection cistern, where a pump can recycle the water for irrigation or water features. Pollutants are removed from the water as it drains through the gravel, which adds additional protection for the environment.

PICPstorage

Many municipalities and states offer grants and tax incentives for installing either permeable pavers or a rainwater harvesting system, which is likely a factor in the growing popularity of using permeable pavers for this purpose. With the variety of attractive Belgard permeable pavers available, homeowners can build stunning outdoor living areas, driveways and walkways that are as ecologically responsible as they are beautiful.

Tips for Keeping Your Cool

With triple-digit heat indexes spanning the lower half of the country, many people are now scurrying indoors to avoid the heat, forced to enjoy their beautiful outdoor living spaces from the comfort of the kitchen window. However, there are a number of design tips and tricks that can alleviate some of the heat and allow you to get more use from your outdoor living spaces during those dog days of summer.

Advantages of Pergolas

A pergola can provide multiple design benefits for an outdoor living space. The open-air aspect allows for unrestricted air movement while still defining the space to visually create the look of an “outdoor room”. Additionally, the structure itself both filters the direct sunlight and can provide the framework for a outdoor-rated ceiling fan. To provide additional shade and add to the visual interest, flowering vines — such as Wisteria or Morning Glory — can be trained to grow atop the pergola.

.   .   .

Outdoor Living Structures

The benefit of a roofed structure, as opposed to an open-air pergola, is that it provides a little more protection from the elements, including both sun and rain. Although late afternoon sun and driving rain will still creep in, you’ll still have increased shelter, as well as additional opportunities for fans, lighting, audio/visual equipment and appliances.

.   .   .

Made in the Shade

There are a variety of affordable products available that can help increase the amount of shade in your outdoor living space, particular during that unbearably hot time of the day when the sunlight comes in at just the right angle to make you feel like you can fry an egg right on the patio flooring. Attractive options include indoor/outdoor curtains, retractable solar shades, and colorful sun canopies.

.   .   .

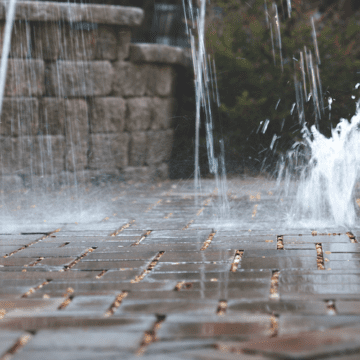

Permeable Paver Water Features

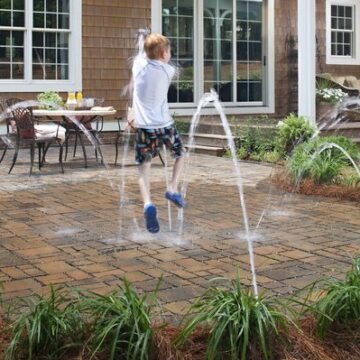

Particularly in hot climates with lower humidity, water mist can significantly reduce the ambient temperature of a localized outdoor area. An alternate option to a traditional water-misting system is to install a water-recycling permeable pavement system that incorporates a water feature. The paver system can collect and recycle rainwater and provide a fun activity for kids, all while releasing mist into the air that will help alleviate some of the oppressive heat.

2016 Outdoor Living
Trends Forecast

Outdoor living has indeed become a staple of American culture. As many homeowners begin to spend more time in their outdoor living areas than in their indoor living areas, the overall trends continue to revolve around creating homey, attractive, livable outdoor spaces that are an extension of the indoor environment. As we enter 2016, expect to see a continuation of this theme in outdoor living design, as well as increases in sustainable (“green”) outdoor living practices.

Midnight Bordeaux
Bordeaux Series Fireplace, Midnight trim

Home is where the hearth is.

Once upon a time, the living room fireplace was the favored gathering spot for family and guests, and roasting marshmallows over a campground fire was part of the annual family vacation. Modern outdoor living combines these two traditions into one with outdoor fireplaces and fire pits. This trend will continue to be one of the fastest growing phenomenons in outdoor living for 2016. To meet these needs, Belgard continues to expand and develop the Belgard Elements collection and has recently released a new Midnight trim option for the Bordeaux Series fireplace and matching kitchen pieces. In addition, Belgard offers a full line of retaining wall products that are ideal for creating custom outdoor fireplaces and fire pits, such as Celtik® Wall or Weston Stone®.

Mirage Porcelain Pavers, Officine Collection

Mimicking the indoor environment.

Outdoor living room designs continue to mimic the look of their indoor counterparts. This includes furniture design, lighting fixtures, decorative accessories and flooring. Modern interior design is trending towards larger tiles with natural textures. The same goes for outdoor hardscapes. Expect to see an increase in the popularity of larger format pavers with natural textures and design elements, such as the natural flagstone look of Mega-Arbel®, the cut flagstone look of Mega-Lafitt™, and the cut slate look of Lafitt™ Rustic Slab, all of which offer multi-piece large-format design options. Because of the thinner profile, Lafitt Rustic Slab and its smooth counterpart Lafitt™ Grana Slab are both available with an extra-large 14″x22″ piece. Also expect to see an increase in the popularity of Mirage® Porcelain Pavers, which are a durable outdoor-rated version of interior porcelain tiles and are available in a variety of large-format sizes and natural looks, including trendy wood grain and stone textures.

Celtik Kitchen
Celtik Wall kitchen and Mega-Bergerac pavers

Rise of the outdoor chef.

Outdoor kitchens now rival the scope and scale of their indoor counterparts, with professional-rated appliances, multiple cooking surfaces, and bar-type seating with ample countertop and prep space. Expect to see an increase in brick ovens as more homeowners learn that these attractive fixtures can be used for more than just cooking pizza, but can actually function as a full-use outdoor oven. To meet the needs of evolving kitchen trends, Belgard offers a variety of kitchen pieces and brick ovens in the Belgard Elements collection and has recently released Tandem™ Modular Grid, which can be used to quickly and easily create custom outdoor kitchens and coordinating design elements.

National hardscape manufacturer, Oldcastle APG, projects located in North and South Carolina.
Subterra Stone permeable paver driveway

Turns out, it is easy being “green”.

For several years, permeable pavers have been a growing movement in commercial construction as more municipalities develop and implement stronger codes for managing stormwater. But as homeowners learn about the benefits of permeable pavers, the trend is beginning to make its way into the residential arena, particularly for driveways, and is expected to continue to grow. Textured permeable pavers, like Subterra® Stone and Eco Dublin®, offer the natural stone look that homeowners desire, while at the same time reducing flooding and improving local waterways through the absorption and filtration of stormwater through the paver joints. As an added benefit, permeable pavers can be used as part of a rainwater harvesting system to collect and reuse water for irrigation or other gray-water uses. Because many states and municipalities offer grants and tax incentives for these types of sustainable, or green, practices, the reduced net cost is an attractive incentive for savvy homeowners.
